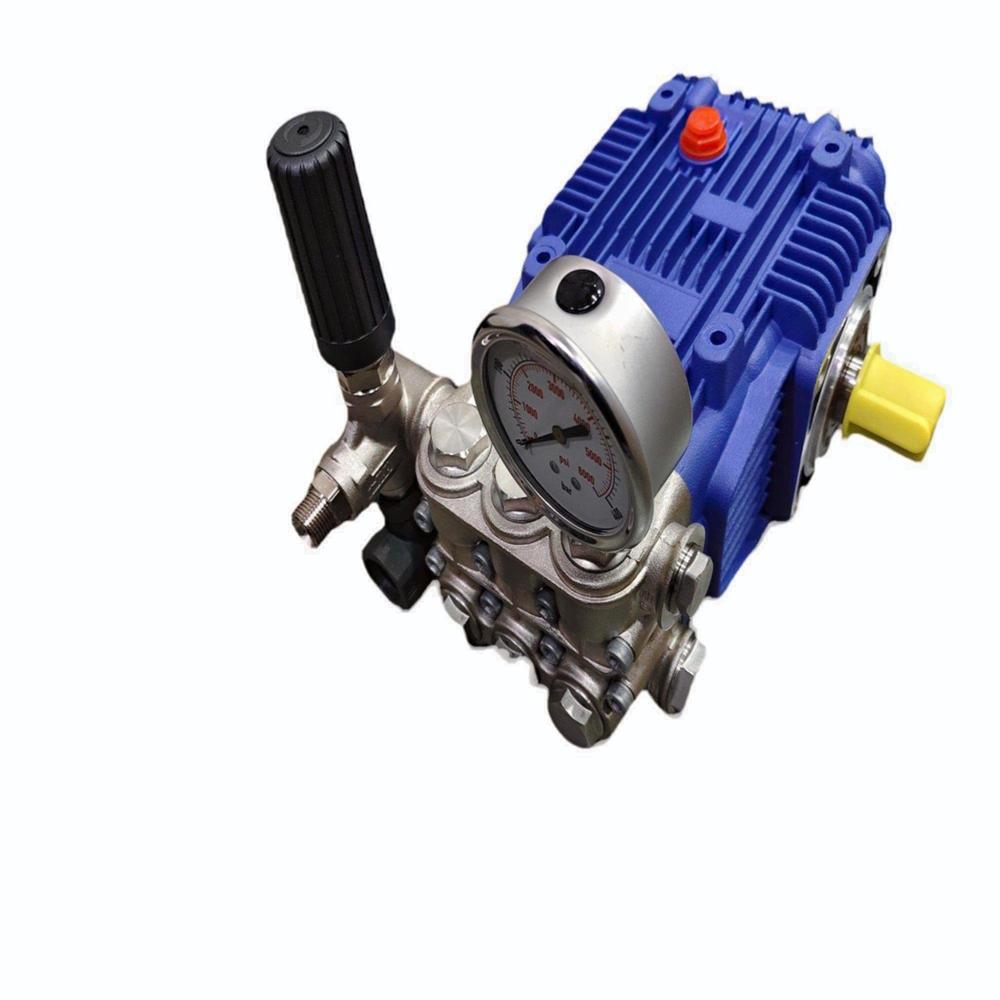

Triplex High Pressure Plunger Pumps

Name: Triplex High Pressure Plunger Pumps
Brand: MACH POWERPOINT PUMPS INDIA PVT. LTD.
Price: 45000.0 INR
Availability: InStock

Price 45000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Triplex High Pressure Plunger Pumps Specification

Discharge Pressure
Up to 1400 Bar

Mounting Type
Base Mounted

Max Suction
-0.3 to 1.0 bar

Theory
Reciprocating Triplex Plunger

Features
Corrosion resistant, Low maintenance, Robust construction

Control System
Manual / Auto

Head Size
Standard / Customizable

Working Temperature
Up to 80C

Flow Rate
15 LPM

Frequency
50 Hz / 60 Hz

Caliber
Standard

Speed
350 - 1450 RPM

Voltage
220/415 Volt (v)

Inlet/Outlet
1 BSP / 3/4 BSP

Noise Level
<85 dB(A)

Material
SS 304 / SS 316 / Alloy Steel

Structure
Horizontal Triplex Plunger

Power
2.2 kW to 75 kW

Standard
ISO 9001:2015, CE

Fuel Type
Electric

Pressure
Up to 1400 Bar

Usage
Industrial High Pressure Cleaning, Hydro Testing

Application
Car Washing, Vessel Cleaning, Boiler Feed, Hydro Blasting

Suction Type
Positive

Seals Type
High Pressure Nitrile/Viton/EPDM

Priming
Self-/Manual Priming

Pump Type
Triplex High Pressure Plunger

Capacity
11 LPM to 395 LPM

Protection Class
IP55 / IP65

Drive Type
Electric Motor / Engine Driven

Cooling Method
Air / Water Cooled

Service Life
High cycle durability, over 2000 hours

Plunger Material
Ceramic Coated / SS Plungers

Bearing Type
Heavy Duty Roller Bearing

Weight
125 kg (approx.)

Pump Head Design
Integral / Monoblock Design

Lubrication
Splash / Force Feed

About Triplex High Pressure Plunger Pumps

200 bar 15 lpm triplex plunger pump

Pressure200 bar
Flow Rate15 lpm
Drive TypeElectric Motor
Mounting TypeBase Mounted
Plunger MaterialBrass
ApplicationHydro Jetting, Descaling, Hydro Testing, Cleaning

Engineered for Extreme Performance

Our Triplex High Pressure Plunger Pumps are designed for continuous-duty operation, delivering high-pressure cleaning for tough industrial environments. The advanced plunger materials and heavy-duty bearings ensure reliable performance, while options like force feed lubrication and customizable head designs enhance versatility and longevity. These pumps are suitable for a variety of applications, including vessel cleaning and hydrostatic testing.

Versatile Applications and Customization

With flexible power options (electric or engine driven), customizable head sizes, and compatibility with multiple control systems, this pump fits a wide spectrum of industrial needs. From high-pressure washing to hydro blasting and boiler feed, choose from standard or tailor-made solutions to match specific operational demands.

Built to Last with High Safety Standards

Certified to ISO 9001:2015 and CE standards, these pumps are protected with IP55/IP65 housing and built with corrosion-resistant materials for longevity even in harsh conditions. Their robust construction, low maintenance requirements, and advanced sealing options ensure minimal downtime and consistent, efficient performance.

FAQ's of Triplex High Pressure Plunger Pumps:

Q: How does the self-priming feature benefit industrial operations?

A: The self-priming capability allows the pump to draw fluid automatically without manual intervention, saving time during startup and minimizing the risk of operational delays. This is especially advantageous for industries with frequent start-stop cycles or variable suction conditions.

Q: What maintenance is required to ensure high cycle durability over 2000 hours?

A: Routine inspection of seals, bearings, and plunger surfaces is recommended. Using the correct type of lubrication (splash or force feed) and periodically checking the cooling system (air or water) will help sustain the pump's high durability and minimize unplanned maintenance.

Q: When should you choose water cooling over air cooling for these pumps?

A: Water cooling is recommended when the pump operates continuously under high loads or at elevated ambient temperatures, as it more effectively dissipates heat and prevents overheating, ensuring reliable performance and extended service life.

Q: Where can these pumps be installed for optimal performance?

A: These pumps are designed for base-mounted installation, indoors or outdoors, with appropriate access to power supply and secured footing. IP55/IP65 protection allows placement in areas exposed to dust and water jets, while manual or automatic controls offer installation flexibility.

Q: What are the main advantages of using high pressure nitrile, Viton, or EPDM seals?

A: Nitrile seals offer chemical resistance and are suited for oil-based fluids, Viton excels with high temperature and aggressive chemicals, and EPDM is ideal for water and steam. Using the correct seal material enhances pump longevity and prevents leaks in different industrial fluids.

Q: How does the robust construction support industrial cleaning and hydro testing usage?

A: Heavy-duty roller bearings, corrosion-resistant materials, and integral or monoblock pump head designs contribute to robust construction. This ensures the pump withstands high-pressure cycles and aggressive media, which is vital for consistent performance in industrial cleaning and hydro testing applications.
