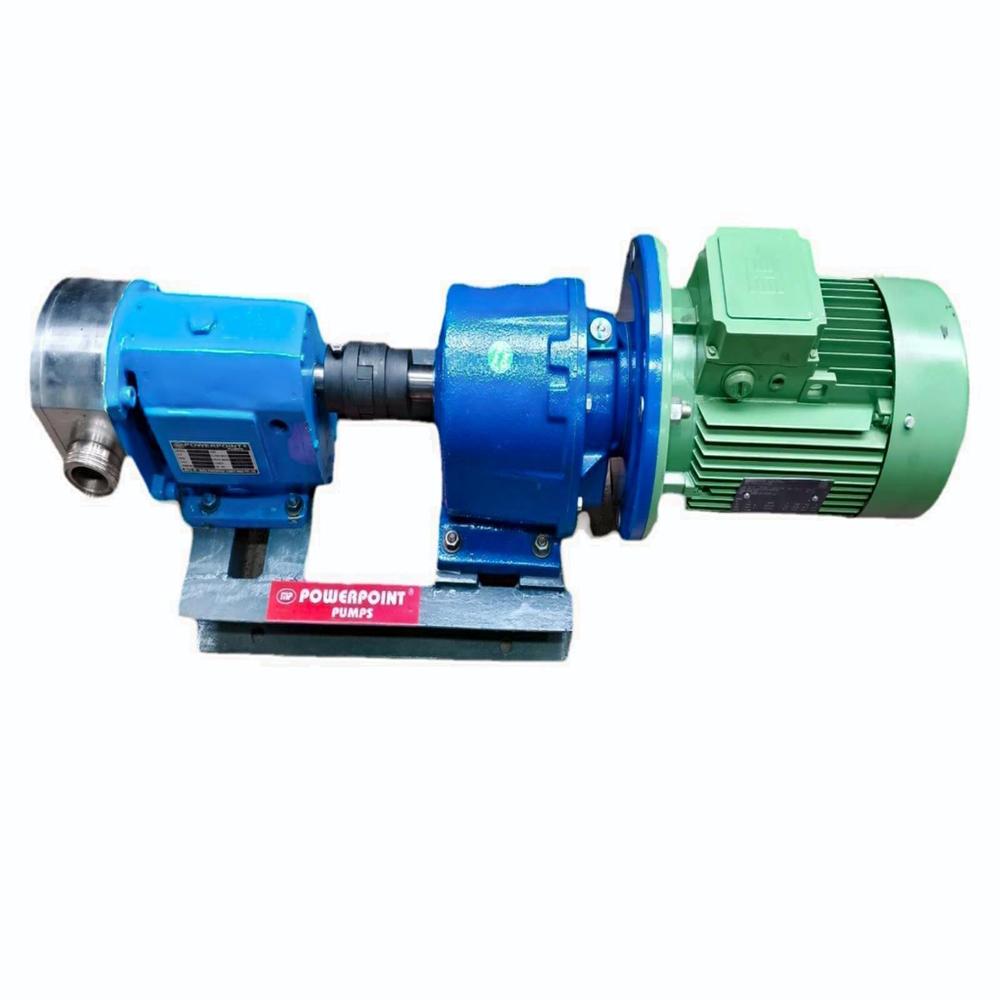

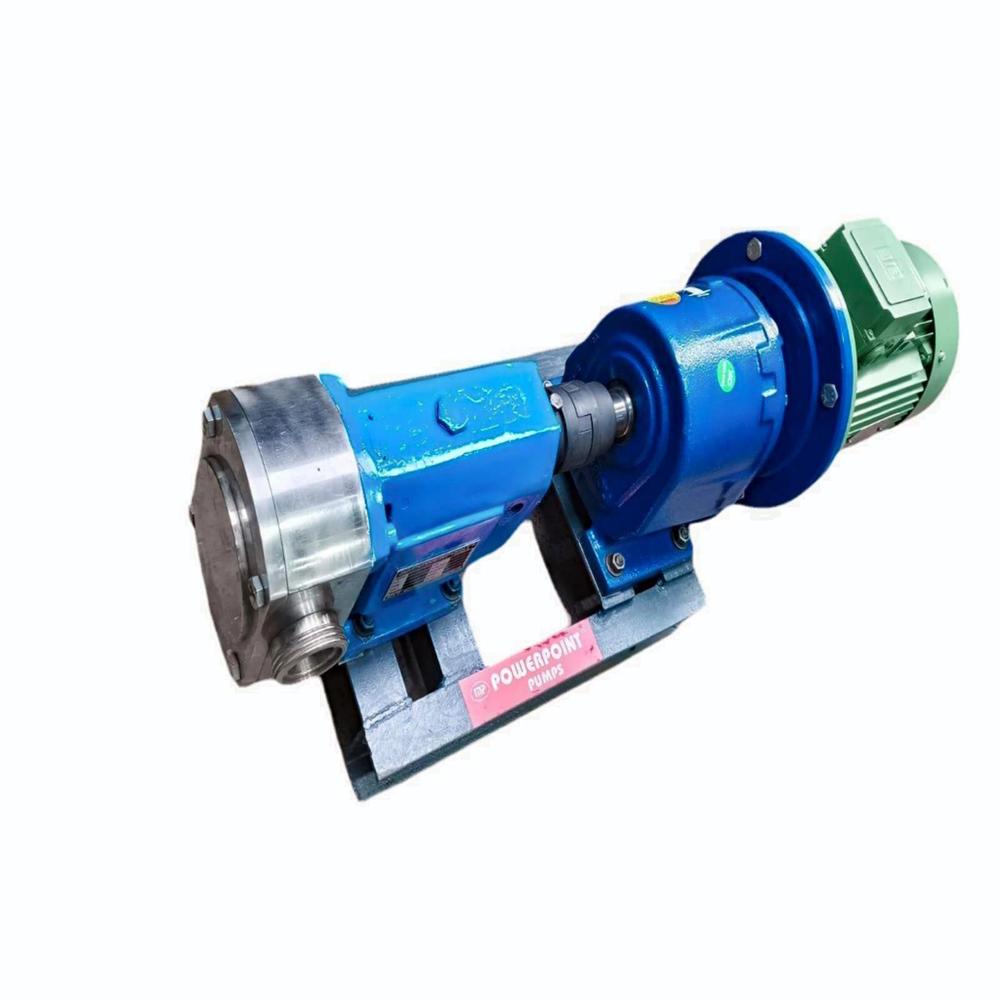

Stainless Steel Rotary Lobe Pump

Name: Stainless Steel Rotary Lobe Pump
Brand: MACH POWERPOINT PUMPS INDIA PVT. LTD.
Price: 155000.0 INR
Availability: InStock

Price 155000.0 INR/ Set

Get a Price/Quote

MOQ : 1 Set

Stainless Steel Rotary Lobe Pump Specification

Head Size
Up to 50 meters

Working Temperature
-20C to 120C

Speed
200 - 900 RPM

Frequency
50/60 Hz

Theory
Rotary Lobe Pump

Discharge Pressure
Up to 12 Bar

Flow Rate
3 m3/h to 60 m3/h

Caliber
1.5 inch to 3 inch

Max Suction
8 meters

Inlet/Outlet
38 mm, 50 mm, 63 mm, 76 mm (customizable)

Voltage
415 Volt (v)

Control System
Manual/Automatic

Mounting Type
Horizontal/Flange Mounted

Noise Level
<70 dB

Features
CIP/SIP capable, Hygienic Design, Low Shear, Low Maintenance

Material
Stainless Steel 304/316

Structure
Stainless Steel Body

Power
1.5 kW to 15 kW

Standard
ISO 9001, CE

Fuel Type
Electric

Pressure
Up to 1.2 MPa

Usage
Industrial Fluid Handling

Application
Pharmaceuticals, Food Processing, Dairy, Chemical, Cosmetics

Suction Type
Positive Displacement

Seals Type
Mechanical Seal

Priming
Self-priming

Pump Type
Rotary Lobe

Capacity
30 - 1000 L/min

Port Connection Types
Threaded/Flanged/Clamp

Lobe Options
2-Lobe, 3-Lobe, 4-Lobe (Customizable)

Viscosity Range
1 to 200,000 cP

Surface Finish
Mirror/Matte Finish

Max Particle Size Passage
Up to 30 mm

Weight
45 - 260 kg (depending on model)

Direction of Rotation
Bi-directional

About Stainless Steel Rotary Lobe Pump

Discover the Triumphant Stainless Steel Rotary Lobe Pump-engineered for a marvelous performance in industrial fluid handling applications! Boasting a superb viscosity range of 1 to 200,000 cP and bi-directional rotation, this pump comes with customizable lobe options and world-class surface finishes. Designed for versatility with a variety of port connections, it handles a wide assortment of fluids, even with high particle content. Limited time availability-grab yours now! Purchase with confidence and elevate your production with this ISO 9001 and CE-certified masterpiece.

Versatile Application & Exceptional Features

The Stainless Steel Rotary Lobe Pump is renowned for its superior surface finish, available in both mirror and matte options. Commonly used across pharmaceuticals, food processing, dairy, chemicals, and cosmetics industries, it offers hygienic design, low maintenance, and low shear operation. Engineered for CIP/SIP capability and self-priming performance, it excels at transferring diverse liquids, from low to high viscosity. This pump is perfect where sanitary standards and reliability are paramount.

Main Export Markets, Supply Ability & Fast Arrivals

This Rotary Lobe Pump finds its way to domestic markets and international clients alike, serving as a leading choice for importers, exporters, manufacturers, suppliers, and traders in India and worldwide. With an impressive supply ability and prompt express shipping, customers can expect timely arrivals. Flexible payment terms ensure smooth transactions, making the procurement process convenient and customer-centric. Our pumps are trusted in various markets owing to reliability, efficiency, and robust after-sales support.

FAQ's of Stainless Steel Rotary Lobe Pump:

Q: How does the bi-directional operation benefit industrial processes?

A: Bi-directional rotation allows the pump to handle reverse flow without reconfiguration, providing flexibility and adaptability in various industrial fluid transfer scenarios.

Q: What types of connections and finishes are available for the pump?

A: The pump offers threaded, flanged, and clamp connections, along with a choice of mirror or matte surface finishes to suit specific sanitary and aesthetic requirements.

Q: Where is the Stainless Steel Rotary Lobe Pump typically used?

A: This pump is used extensively in pharmaceuticals, food processing, dairy, chemical, and cosmetics industries due to its hygienic construction and robust performance.

Q: What is the process for customizing the pump to my requirements?

A: Customization includes selecting lobe types, choosing port size and finish, and specifying operational parameters. Our team will guide you through each step to tailor the pump to your application.

Q: What are the key benefits of using this pump in high-viscosity applications?

A: The pump efficiently manages fluids up to 200,000 cP, ensures gentle handling with low shear, and maintains high hygiene standards, making it ideal for sensitive or viscous products.
