Powerpoint Stainless Steel Jet Water Pump

Name: Powerpoint Stainless Steel Jet Water Pump
Brand: MACH POWERPOINT PUMPS INDIA PVT. LTD.
Price: 9600.0 INR
Availability: InStock

Price 9600.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Powerpoint Stainless Steel Jet Water Pump Specification

Noise Level
Low

Speed
2880 RPM

Theory
Jet Impeller

Mounting Type
Foot Mounted

Caliber
25 mm

Frequency
50 Hz

Working Temperature
Ambient

Max Suction
8 Metres

Head Size
40 Metres (Max)

Control System
Manual

Inlet/Outlet
25 mm x 25 mm

Features
Corrosion Resistant, High Efficiency, Low Maintenance

Discharge Pressure
Up to 4 Bar

Flow Rate
50 LPM (Litres Per Minute)

Voltage
220 Volt (v)

Material
Stainless Steel

Structure
Horizontal Motorized Pump

Power
1 HP

Standard
ISI Marked Components

Fuel Type
Electric

Pressure
4 Bar (Maximum Head Pressure)

Usage
Water Transfer, Domestic and Commercial Applications

Application
Domestic Water Supply, Irrigation, Industrial Use

Suction Type
Jet

Seals Type
Mechanical Seal

Priming
Self-Priming

Pump Type
Jet Water Pump

Capacity
50 LPM

Year of Manufacture
2024

Motor Protection
IP44

Dimensions
450mm x 190mm x 240mm

Thermal Protection
Available

Impeller Material
Stainless Steel

Motor Winding
Copper

Phase
Single Phase

Weight
Approx. 15 kg

Powerpoint Stainless Steel Jet Water Pump About

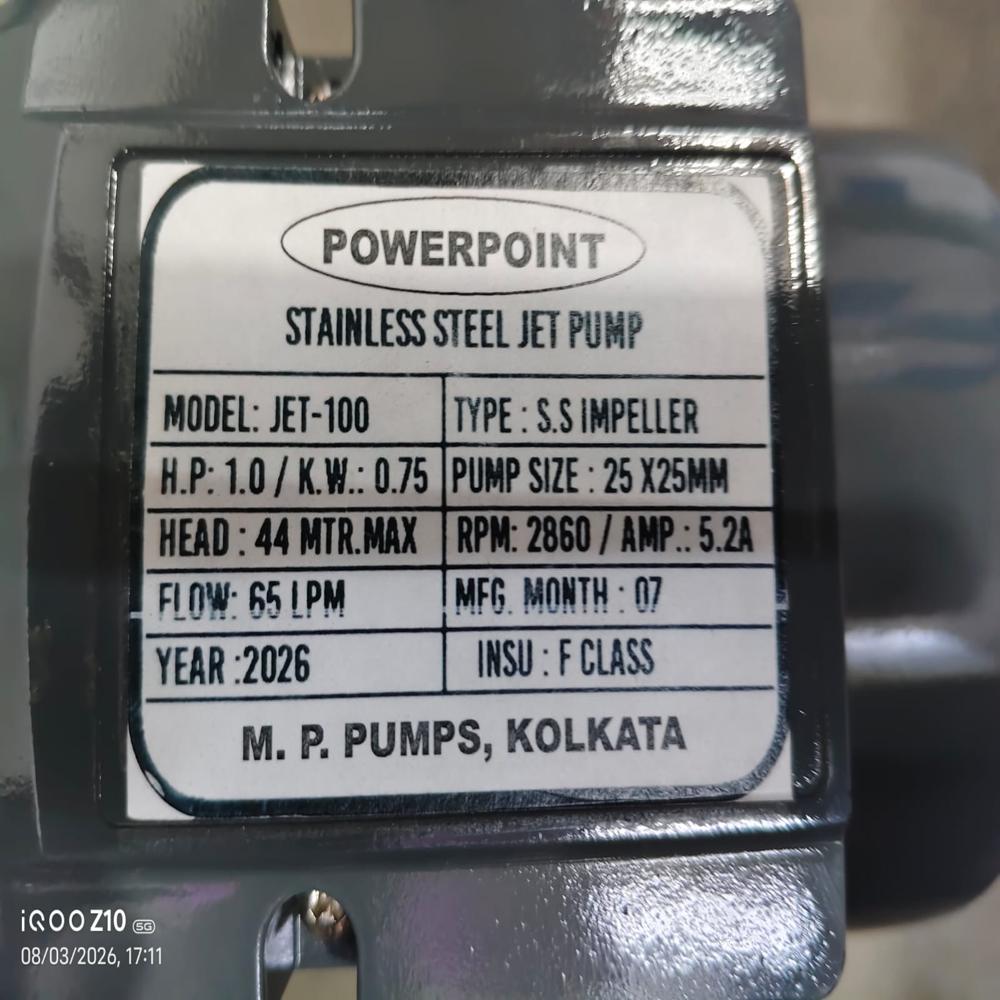

This 1.0 HP stainless steel jet pump features a 25x25mm port size and a maximum head of 44 meters. Designed for efficient water transfer, it includes an S.S. impeller and operates at 2860 RPM.

Steel Grade
SS304
Pump Type
Centrifugal
Application
Water
Capacity
3 m3/h
Max Head
40 m
Power Rating
1 HP

Superior Stainless Steel Construction

This jet water pump features a fully stainless steel impeller and body, ensuring exceptional resistance to corrosion and a long operational life, even in demanding environments. The material choice makes it suitable for both domestic and commercial water supplies, irrigation, and industrial processes.

Reliable and Safe Motor Protection

Built with a copper-wound motor safeguarded by IP44-rated housing and integrated thermal protection, this pump offers robust defense against dust, water, and overheating. The motor's advanced design ensures consistent performance while minimizing maintenance requirements.

Efficient Water Transfer and Self-Priming

Engineered with jet impeller technology, the Powerpoint pump can self-prime and reach a maximum suction height of 8 metres. Output capacity of up to 50 litres per minute and a maximum pressure of 4 Bar makes it ideal for a range of water transfer tasks, from home water supply to industrial applications.

FAQ's of Powerpoint Stainless Steel Jet Water Pump:

Q: How does the self-priming feature work on this jet water pump?

A: The self-priming capability allows the pump to automatically expel air and fill with water upon startup, making it highly convenient for installation above ground, even when the inlet pipe isn't completely filled. This means quick setup and reliable operation without manual priming.

Q: What types of applications can this pump be used for?

A: This jet pump is versatile and is suitable for domestic water supply, irrigation systems, commercial installations, and various industrial water transfer tasks. Its robust construction and high efficiency cater to multiple usage scenarios.

Q: What benefits does the stainless steel impeller and body provide?

A: A stainless steel impeller and body ensure corrosion resistance and enhanced durability, translating to a longer service life even under exposure to various water qualities or slightly corrosive environments.

Q: When is thermal protection activated in the motor?

A: Thermal protection activates automatically when the motor temperature exceeds safe operating limits, safeguarding the winding and internal components from overheating and potential damage. This ensures longevity and enhances pump safety.

Q: Where can this pump be installed, and are there mounting requirements?

A: The pump is designed for foot-mounted installation, suitable for placement on stable horizontal surfaces in homes, gardens, commercial premises, or industrial sites. Its compact dimensions facilitate easy mounting in restricted spaces.

Q: What maintenance is needed for this jet water pump?

A: Routine inspection of seals and cleaning of the inlet filter is recommended. Thanks to its corrosion-resistant components and high-quality build, overall maintenance is minimal, reducing downtime and operational costs.

Q: How energy efficient is this pump compared to standard models?

A: With a 1 HP copper-wound motor and optimized jet impeller design, this pump achieves high efficiency in water transfer while maintaining a low noise level. Its energy-efficient operation makes it cost-effective for continuous or frequent use.
