Pneumatic Air Operated Drum Pump

Name: Pneumatic Air Operated Drum Pump
Brand: MACH POWERPOINT PUMPS INDIA PVT. LTD.
Price: 36000.0 INR
Availability: InStock

Price 36000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Pneumatic Air Operated Drum Pump Specification

Mounting Type
Drum Mounted

Theory
Reciprocating Pump

Caliber
40 mm

Max Suction
2 meters

Control System
Manual Pneumatic Control Valve

Working Temperature
-10C to 60C

Features
Corrosion Resistant, Portable, Leak-proof Design, Easy Maintenance

Flow Rate
Up to 40 LPM

Head Size
Up to 5 meters

Voltage
Pneumatic (No voltage, Air-operated)

Discharge Pressure
Up to 7 bar

Inlet/Outlet
2 BSP / 1 BSP

Speed
Up to 2800 RPM

Noise Level
Less than 75 dB

Material
Stainless Steel / Polypropylene / Aluminum

Structure
Vertical Drum Pump

Power
Compressed Air

Standard
ISO 9001

Fuel Type
Compressed Air

Pressure
3-7 bar (max. 7 bar)

Usage
Transfer of acids, chemicals, oils, solvents from drums/barrels

Application
Industrial, Chemical, Pharmaceutical, Oil & Gas

Suction Type
Positive Displacement

Seals Type
Viton / PTFE / NBR

Priming
Self-priming

Pump Type
Pneumatic Drum Pump

Capacity
50-210 liters drums

Weight
Approx. 6-10 kg (depending on material)

Discharge Hose
1.5 m (optional accessory)

Drum Size Compatibility
Compatible with 50L, 100L, 200L, 210L drums

Explosion Proof Rating
Suitable for hazardous area use (consult manufacturer)

Air Inlet Connection
1/4" BSP

Recommended Air Pressure
5-7 bar

Pump Length
1000 mm / 1200 mm (optional)

Viscosity Handling
Upto 1000 cP

Service Life
Long Service Life, Designed for Continuous Operation

About Pneumatic Air Operated Drum Pump

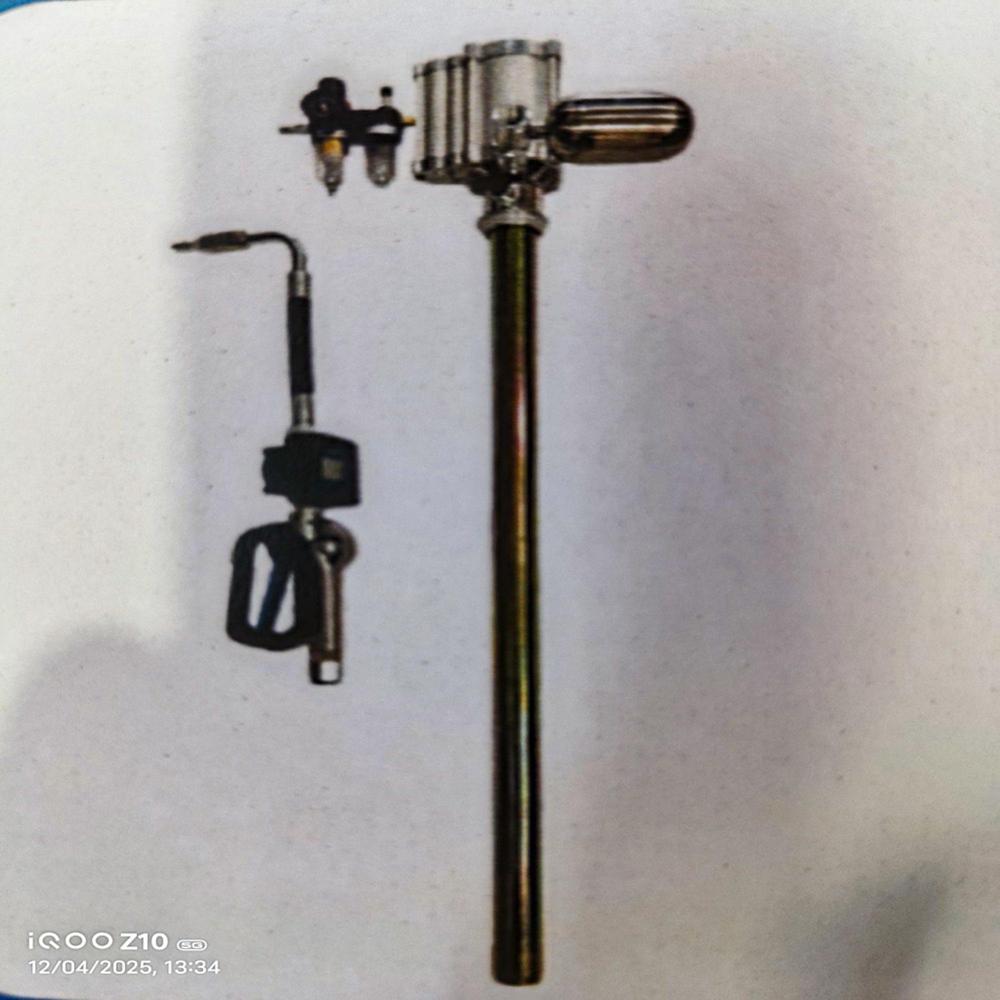

Pneumatic air operated oil drum pump for transfer of lubricating oils and fluids from drums or barrels

Specification/Additional Details

Operation typePneumatic
Pump materialAluminium
MediaOil
Drum size200 L
Flow rate10 lpm

Efficient, Versatile Fluid Transfer

Handle viscous fluids up to 1000 cP with this drum pump, suitable for various liquids including chemicals, oils, and solvents. With a flow rate up to 40 LPM and delivery head up to 5 meters, it promises consistent performance across industrial applications. Corrosion-resistant material options and a self-priming positive displacement mechanism ensure uninterrupted, reliable operation.

Safe Operation in Hazardous Settings

This pneumatic drum pump is rated for explosion-proof performance-ideal for hazardous industrial environments. Since it operates on compressed air (no voltage), electrical risks are eliminated. Always consult the manufacturer regarding hazardous area compatibility and follow safety protocols for maximum security during operation.

User-Friendly and Low Maintenance Design

Engineered for portability and easy maintenance, this pump features a leak-proof structure and manual pneumatic control. Its drum-mounted configuration and optional accessories like a 1.5 m discharge hose provide flexibility. Made to ISO 9001 standards, it boasts a long service life and is supported by a network of exporters, importers, manufacturers, suppliers, and traders in India.

FAQ's of Pneumatic Air Operated Drum Pump:

Q: How does a pneumatic air operated drum pump work?

A: This pump uses compressed air (3-7 bar) to power a reciprocating mechanism, creating a self-priming, positive displacement action. It draws fluids from drums or barrels and delivers them efficiently, with the process controlled manually via a pneumatic control valve.

Q: What types of liquids and viscosities can I transfer with this pump?

A: The pump can handle a variety of fluids such as acids, chemicals, oils, and solvents, even those with viscosities up to 1000 centipoise (cP). Material and seal options further enable compatibility with aggressive or corrosive substances.

Q: When is this pump suitable for hazardous area use?

A: While the pump is rated for explosion-proof operation thanks to its pneumatic drive (no electrical voltage), users should consult the manufacturer to ensure suitability for the specific hazardous area classification relevant to their operation.

Q: Where can I install and use this drum pump?

A: It is designed for mounting directly onto standard-sized drums (50L, 100L, 200L, 210L) in industrial, chemical, pharmaceutical, and oil & gas environments. The portable structure enables flexible use across various process setups.

Q: What is the process for maintaining this pump and ensuring a long service life?

A: Routine inspection of seals (Viton/PTFE/NBR), checking for leaks, and regular cleaning are recommended. Its easy maintenance design allows quick servicing, reducing downtime and ensuring continuous, long-lasting performance.

Q: How do I benefit from using a pneumatic drum pump over an electric one?

A: Pneumatic operation eliminates electrical hazards, making it particularly safe for explosive or flammable environments. Additionally, it provides robust, continuous service with lower noise, better portability, and fewer maintenance challenges.
