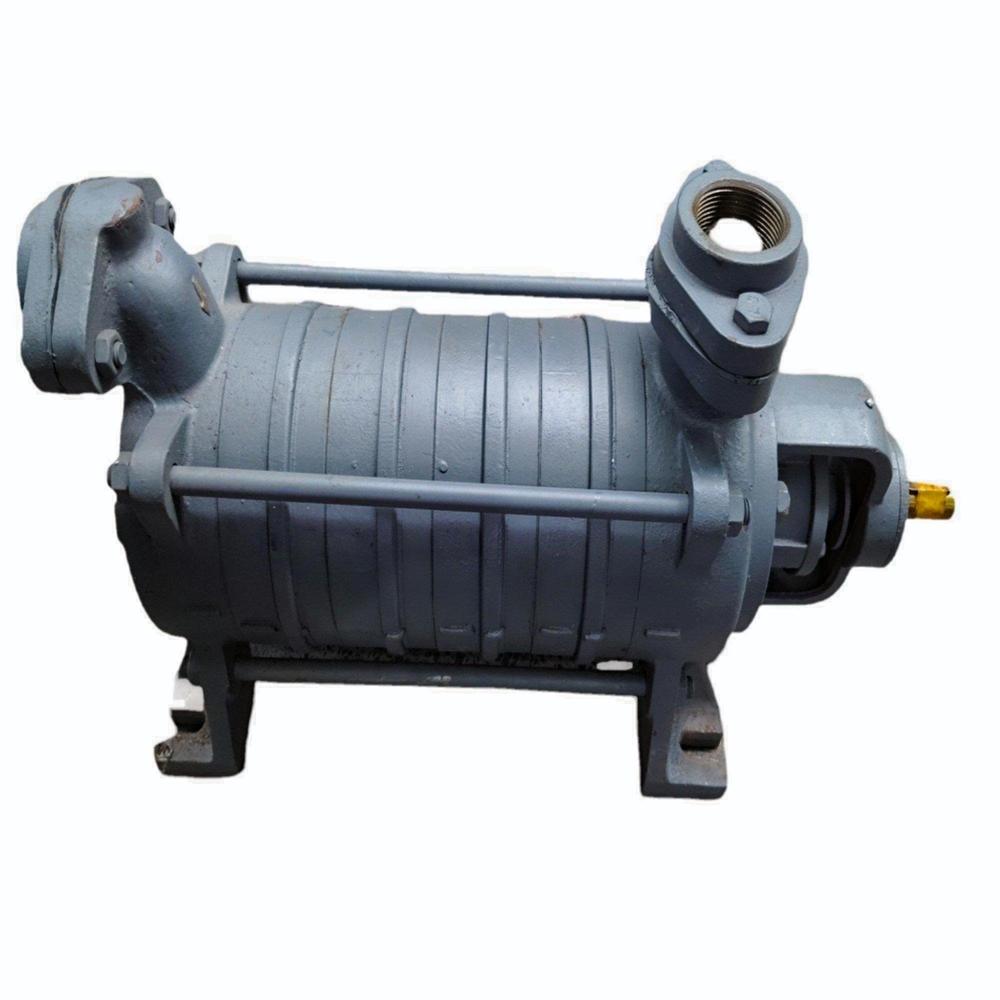

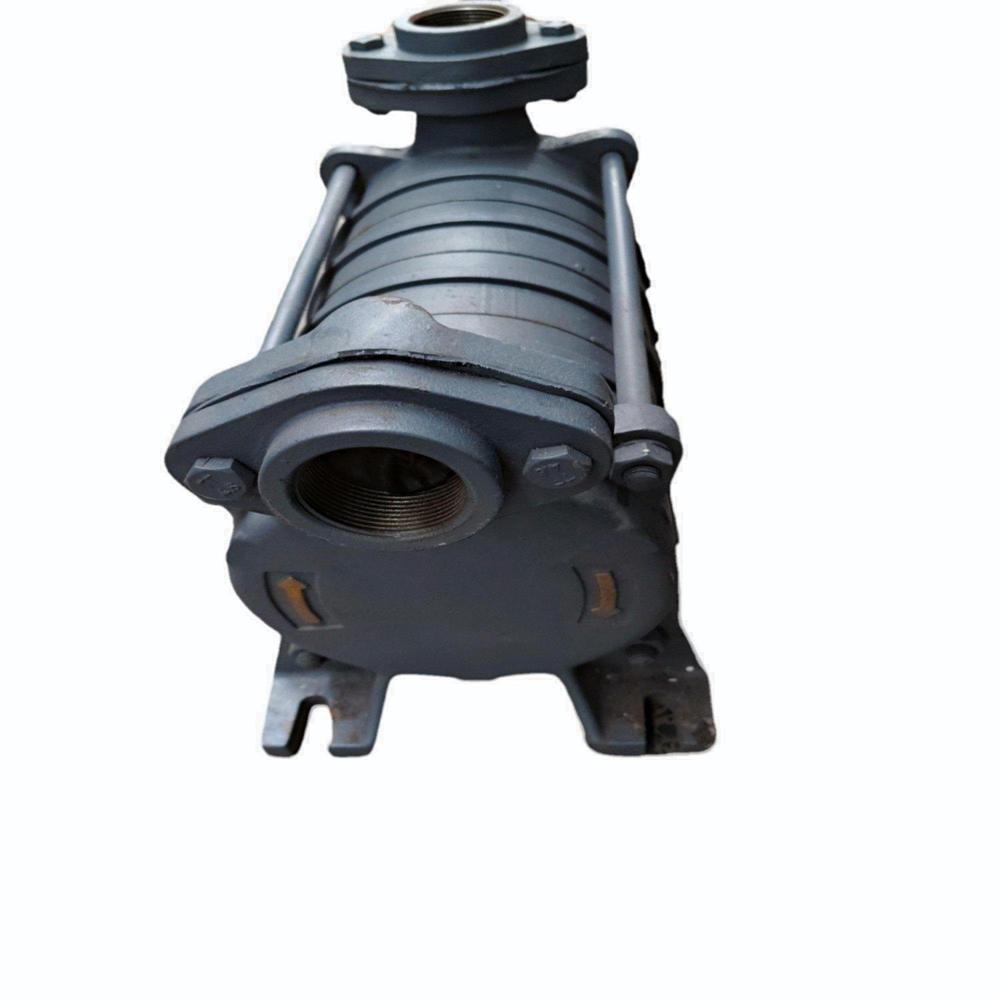

Boiler Feed Pump

Name: Boiler Feed Pump
Brand: MACH POWERPOINT PUMPS INDIA PVT. LTD.
Price: 36000.0 INR
Availability: InStock

Price 36000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Boiler Feed Pump Specification

Inlet/Outlet
DN32 - DN150 mm

Caliber
32-150 mm

Discharge Pressure
Up to 16 MPa

Features
High Performance, Robust Design, Energy Efficient

Noise Level
Below 75 dB

Flow Rate
5 m3/h

Voltage
415 Volt (v)

Theory
Centrifugal Pump

Head Size
Up to 160 m

Control System
Automatic / Manual

Mounting Type
Base Mounted

Max Suction
Up to 7 m

Speed
2900 rpm

Working Temperature
Up to 110C

Frequency
50/60 Hz

Material
CAST IRON

Structure
Horizontal / Multistage

Power
1-200 HP

Standard
IS 5120 / ISO 5199

Fuel Type
Electric Motor Driven

Pressure
High Pressure

Usage
Boiler Feed

Application
Boilers, Power Plants, Refineries

Suction Type
End Suction

Seals Type
Mechanical Seal / Gland Packing

Priming
Self / Manual

Pump Type
Boiler Feed Pump

Capacity
Up to 300 m3/hr

Direction of Rotation
Clockwise (Standard)

Cooling
Water Cooled / Air Cooled Options

Bearing Lubrication
Oil / Grease Lubricated

Impeller Type
Enclosed / Semi-open

Coupling
Flexible / Rigid Coupling

Protection Class
IP55 / IP65

Shaft Material
Stainless Steel

Service Life
Long Service Life

Seal Material
Burgmann / Equivalent

About Boiler Feed Pump

Multistage boiler feed water pump

Specification

Pump Type
Multistage
Discharge Pressure
10 bar
Flow Rate
5 m3/h
Power Rating
10 HP
Liquid Temperature
Up To 90 C
Body Material
Cast Iron

Versatile Impeller and Reliable Performance

Engineered to accommodate both enclosed and semi-open impeller types, this Boiler Feed Pump delivers effective hydraulic performance while minimizing downtime. Its stainless-steel shaft and Burgmann-equivalent seals bolster its resistance to wear, contributing to its reputation for long service life and reliability in various industrial applications.

Flexible Cooling and Lubrication Options

To match diverse operational demands, the pump offers both water and air cooling, as well as bearings lubricated by either oil or grease. This adaptability ensures optimal efficiency and longevity in environments ranging from high-heat boiler rooms to compact installations with limited cooling resources.

FAQ's of Boiler Feed Pump:

Q: How does the choice between enclosed and semi-open impeller types benefit pump operation?

A: Enclosed impellers offer higher efficiency and are suited for clean water applications, reducing clearance losses, while semi-open impellers handle slightly contaminated fluids better. Choosing the right impeller optimizes performance and minimizes maintenance depending on the water quality handled.

Q: What cooling options are available and when should each be used?

A: The pump provides both water-cooled and air-cooled options. Water cooling is ideal for high-temperature or demanding environments, improving heat dissipation and ensuring stability. Air cooling suits installations with moderate thermal loads or where water supply for cooling is limited.

Q: Where can this boiler feed pump be installed and used?

A: This pump is suitable for industrial boiler applications, water treatment plants, and steam systems. Its IP55/IP65 protection class and robust cast iron construction allow for reliable operation in both indoor and outdoor settings across manufacturing, power generation, or process industries.

Q: What is the process for choosing between oil and grease lubrication for bearings?

A: Oil-lubricated bearings are preferred for high-speed or heavy-load applications, offering superior heat dissipation. Grease-lubricated bearings are easier to maintain and suitable for moderate operating conditions. The choice depends on the operational stress and maintenance capacities of the site.

Q: How does the use of Burgmann or equivalent seals improve service life?

A: Burgmann or equivalent mechanical seals prevent leakage and reduce wear by minimizing friction and contamination. This ensures a longer service life, especially important for continuous operation in critical boiler feed systems.

Q: What are the benefits of selecting a flexible or rigid coupling?

A: Flexible couplings accommodate minor misalignments and absorb vibration, protecting the pump and motor from excessive stress. Rigid couplings ensure precise torque transmission but require perfect alignment. The selection depends on installation requirements and alignment conditions.
