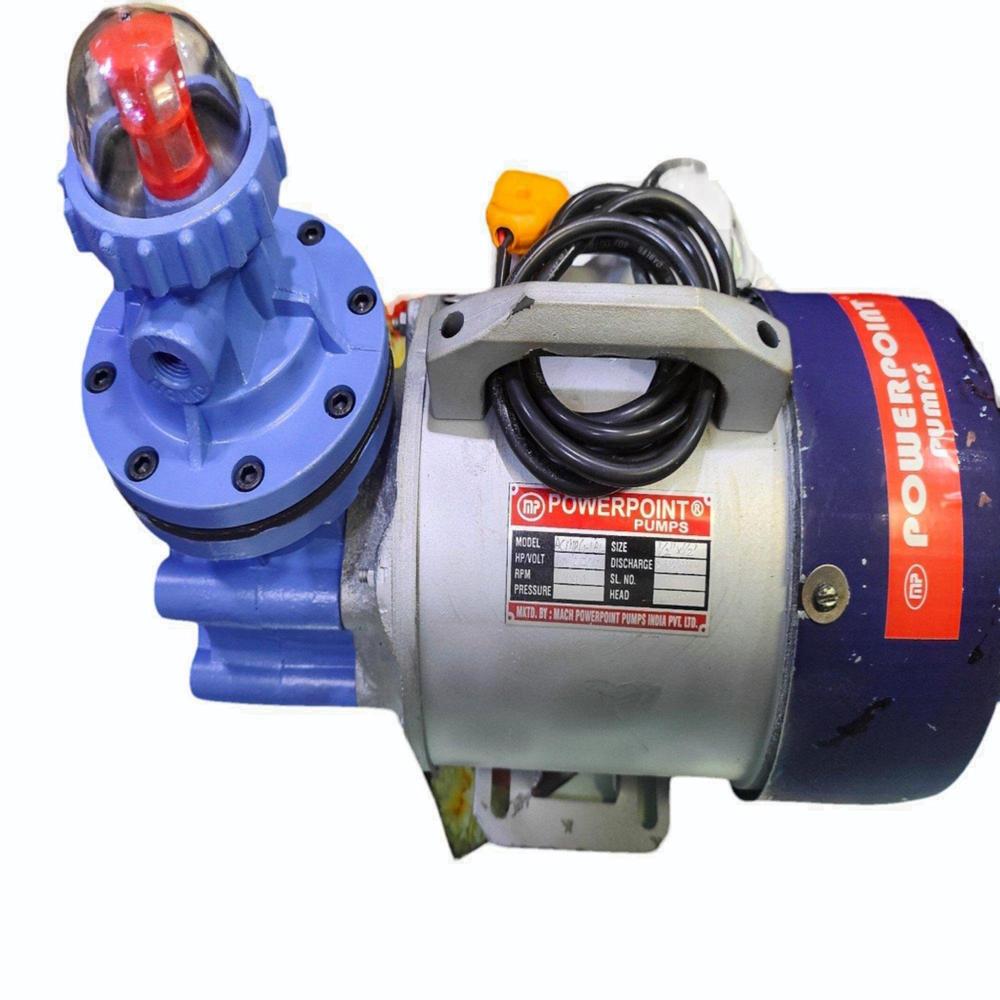

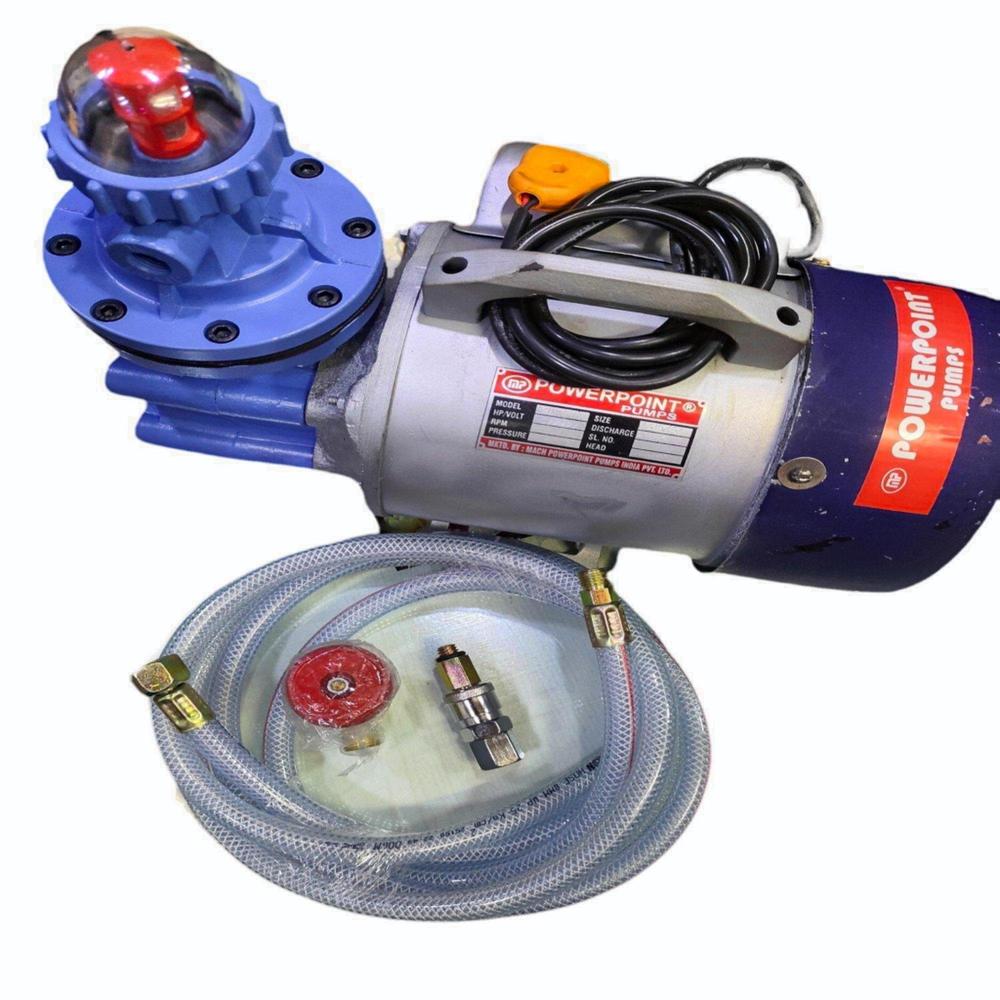

1HP LPG Transfer Pump 220 Volt

Name: 1HP LPG Transfer Pump 220 Volt
Brand: MACH POWERPOINT PUMPS INDIA PVT. LTD.
Price: 9600.0 INR
Availability: InStock

Price 9600.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

1HP LPG Transfer Pump 220 Volt Specification

Noise Level
<75 dB

Discharge Pressure
2.5 Bar

Max Suction
6 Meter

Features
High efficiency, Flameproof motor, Compact design

Theory
Centrifugal Pump

Voltage
220 Volt (v)

Mounting Type
Base Mounted

Control System
Manual

Flow Rate
35 L/min

Speed
2800 RPM

Frequency
50 Hz

Inlet/Outlet
25mm / 25mm (1 inch)

Working Temperature
-20C to 60C

Head Size
25 Meter

Caliber
1 inch

Material
Cast Iron

Structure
Single-stage

Power
1 HP

Standard
ISO 9001 Certified

Fuel Type
LPG

Pressure
2.5 Bar

Usage
LPG Transfer

Application
Industrial Gas Transfer

Suction Type
Direct Suction

Seals Type
Mechanical Seal

Priming
Self-priming

Pump Type
LPG Transfer Pump

Capacity
35 L/min

Cooling Method
Air Cooled

Weight
26 kg

Surface Finish
Powder Coated

Motor Enclosure
Flameproof IP55

Electrical Protection
Overload Protection Provided

About 1HP LPG Transfer Pump 220 Volt

Fuel transfer pump for heavier duty cycle

*Delivery charges extra depending upon your location and quantity
*Warranty-3 months on motor portion ,against manufacturing defect only,no onsite warranty)

Specification/Additional Details

Power1 HP
Usage/Applicationfuel
BrandPOWERPOINT
Model Name/NumberACMPG-1 HP
Voltage220v ac

Exceptional Safety and Protection

With a flameproof IP55 motor enclosure and integrated overload protection, this LPG transfer pump prioritizes operational safety. Its robust build complies with international standards, offering peace of mind in hazardous environments where LPG is transferred.

Designed for Industrial Performance

Engineered with a centrifugal, single-stage structure and an efficient mechanical seal, this pump ensures stable operation at 2800 RPM. The air-cooled motor and powder-coated surface withstand harsh conditions, while the self-priming feature allows direct suction up to 6 meters.

Versatile Application and Easy Control

Perfect for industrial gas transfer tasks, this LPG pump is manually controlled for precise handling. Its 1-inch inlet and outlet make installation seamless, and the compact, base-mounted design maximizes workspace efficiency in Indian industries.

FAQ's of 1HP LPG Transfer Pump 220 Volt:

Q: How does the 1HP LPG Transfer Pump ensure operational safety during LPG transfer?

A: The pump is designed with a flameproof IP55 motor enclosure and overload protection, which significantly reduces fire and electrical hazards when handling flammable LPG in industrial settings.

Q: What are the main usage scenarios for this LPG transfer pump?

A: This pump is ideal for industrial gas transfer applications, especially where LPG needs to be moved quickly and safely. Typical uses include transferring LPG from bulk storage to smaller tanks or industrial processing systems.

Q: When should I use a self-priming, centrifugal LPG pump?

A: A self-priming centrifugal LPG pump is recommended when you require rapid transfer of LPG with minimal manual intervention and where the source is up to 6 meters away from the pump. Its design allows for immediate operation after priming.

Q: Where can this pump be installed for optimal performance?

A: The base-mounted design and compact structure make it suitable for installation in industrial areas with limited space. Ensure it is placed in a well-ventilated, accessible location to facilitate air cooling and manual operation.

Q: What is the process for operating the pump?

A: First, connect the inlet and outlet to the LPG lines using the 1-inch ports. Power the unit with a 220 Volt electrical supply, and use the manual control system to start and stop the transfer process as needed. Always follow safety guidelines when handling LPG.

Q: How does mechanical sealing benefit pump performance?

A: A mechanical seal minimizes the chances of leaks, enhancing both safety and efficiency. This type of sealing is particularly effective with gases like LPG, helping to maintain system integrity over long operational periods.

Q: What are the benefits of choosing this ISO 9001 certified LPG transfer pump?

A: ISO 9001 certification ensures that the pump meets international quality and safety standards. Users benefit from reliable operation, high efficiency, and a durable, low-noise solution for demanding industrial environments.
